S2X Tester
PRODUCTS
S2X Tester
Mobility security credential system conformance testing/certification equipment
S2X Tester
V2X security credential system conformance testing equipment that flexibly responds to diverse and complex security protocols

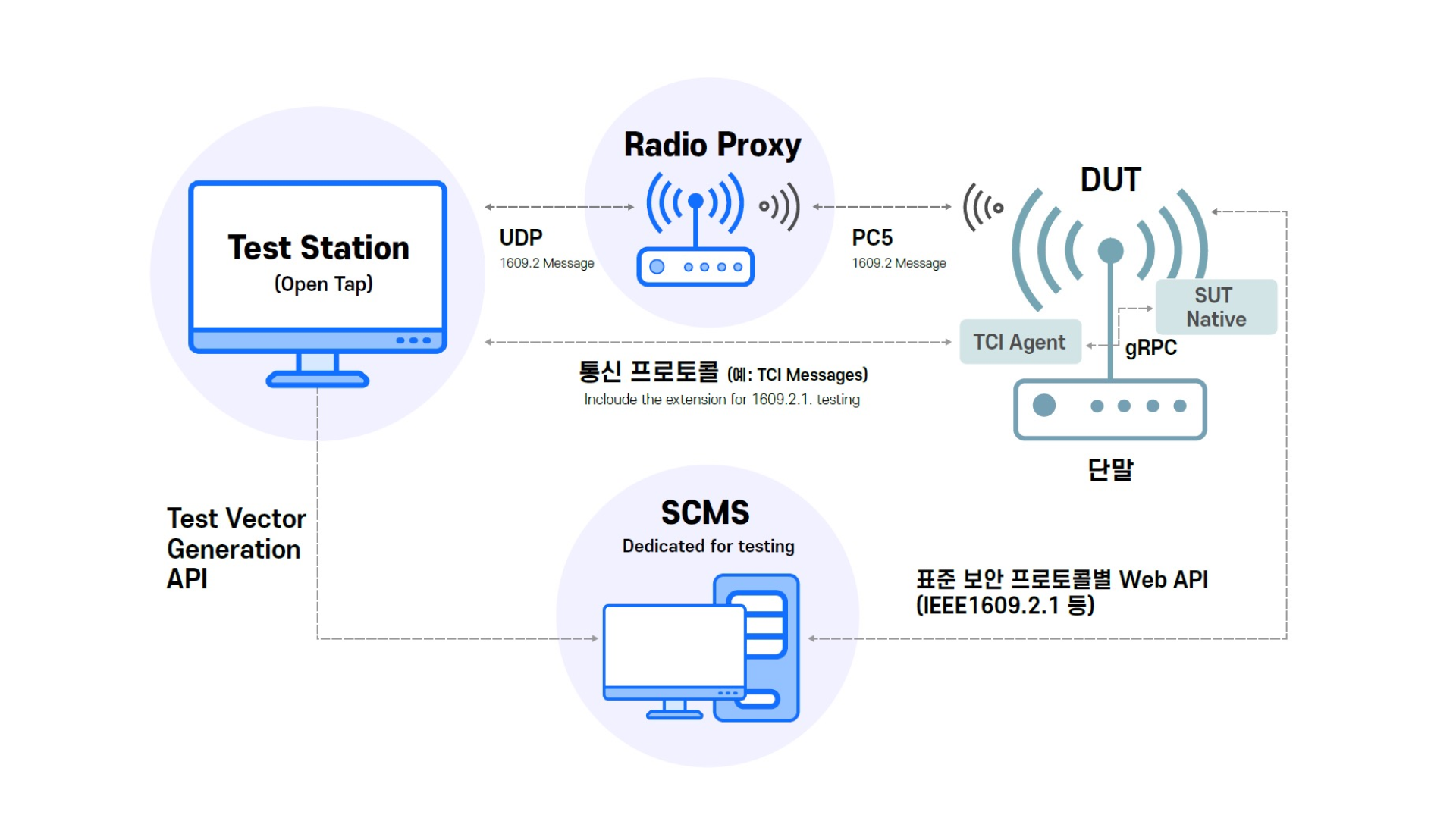

S2X Tester is a solution that automatically evaluates interoperability/conformance between V2X OBU/RSU devices and the security credential system.
In an environment where a security credential system (SCMS) is applied, it provides users of V2X OBU/RSU devices with message signing, behavior verification, and error reports via a dedicated test station, enabling fast and easy SCMS testing.
V2X security credential system conformance, fuzzing testing, platform security testing,
- V2X SCMS PKI server & security test system
- World’s first support for IEEE 1609.2.1 standard testing
- Efficient testing with an intuitive conformance evaluation process
Key Functions
IEEE 1609.2.1-2022 compatibility test validation
- World’s first support for IEEE 1609.2.1 standard testing

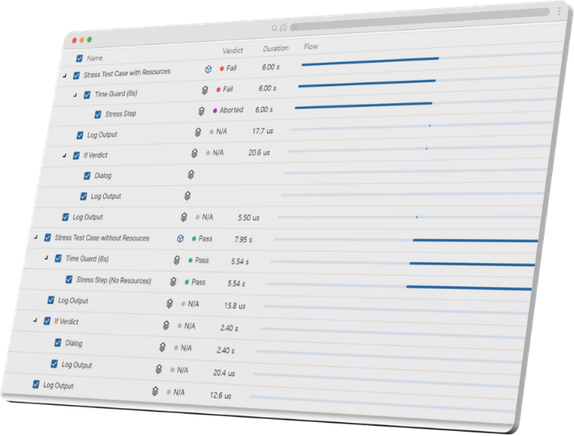

Provides TestCase authoring tools
- Additional TestCase creation supported (language: C#)
- Complex test creation supported (e.g., verifying device response upon certificate expiration)
- Can be developed as a third-party plug-in form for the test execution engine, statistics/reporting, campaign authoring, etc.
Responding to the expansion of V2X security testing
- Supports major security protocols and message formats by region (North America/Europe/China), enabling various V2X test case configurations
Interworking with communication test equipment and providing test result reports based on detailed log data
Why, S2X Tester

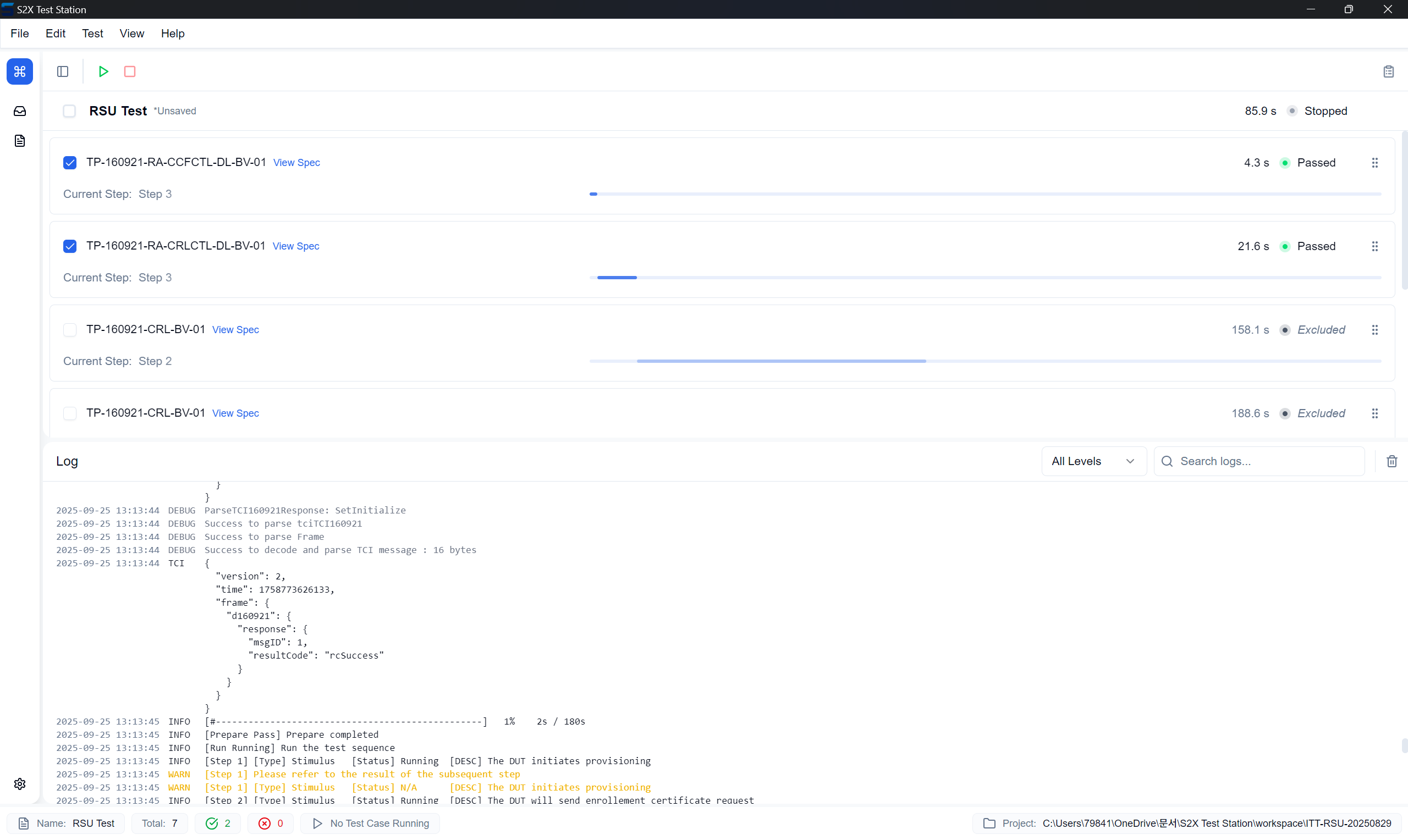

Supports test automation
- Supports TCI v3.1
- Supports additional test TCI
Includes a dedicated S2X CMS for validating signed messages
- Policy settings per test case supported
- Security credential generation per test case supported
Provides a WSMP Message receive proxy connection interface
- Policy settings per test case supported
- Security credential generation per test case supported
Provides a TCI App
- Supports IEEE 1609.2.1 testing and automation
- Reference implementation of the interface between the TCI App and native SUT
